Overview

Basic Info.

Model NO.	ZM Fixed Mine Car
Material	Carbon Steel
Material Feature	Fire Resistant
Certification	CE
Energy Saving	Energy Saving
Warranty	1 Year
Color	Black
Customized	Customized
Condition	New
After-sales Service	Online Video Services
Model	Mgc1.7-6
Volume(M³)	1.7
Max. Load(T)	2.7
Gauge(mm)	600
Wheel Base(mm)	750
Wheel Diameter (mm)	300
Traction(kN)	60
Traction Height(mm)	320
Weight(≤kg)	720
Transport Package	Wooden Case
Specification	2000*880*1150mm
Trademark	shenhua
Origin	China
HS Code	8606300000
Production Capacity	500 Sets/Month

Packaging & Delivery

Package Size60.00cm * 60.00cm * 60.00cm Package Gross Weight50.000kg

Product Description

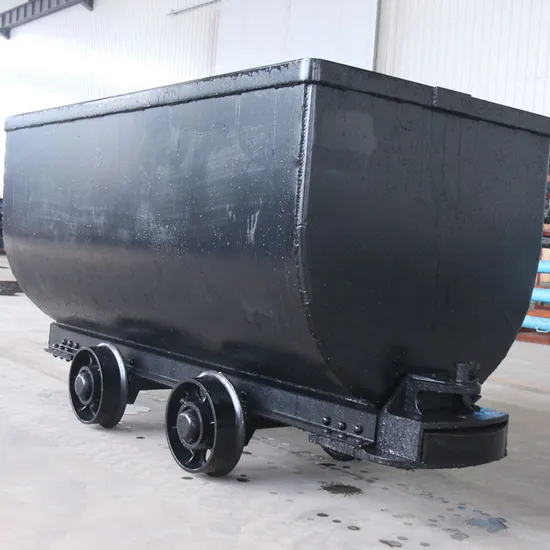

Introduction of Underground Fixed Mine Car Uesd In Coal Mine

The fixed mine car trunk is fixedly connected with the frame, and the dump truck must be turned over and unloaded by the dumper. Its basic components are the car, the frame, the bumper, the coupling and the walking mechanism. The frame is a metal structure that can withstand traction, braking force, collision force between the mine car and rail impact buffers at both ends of the frame to mitigate the impact between the two cars. The coupling is a component that connects the locomotive and the mine car. Commonly used are the bolt chain and the swing chain. The large mine car uses an automatic coupler that has a buffer function. The running gear is a pair of wheels consisting of 4 wheels and 2 shafts. When the sum of mine cars and materials exceeds 20 tons, the number of wheel pairs should generally be increased.zmwm22

Parameter of Underground Fixed Mine Car Uesd In Coal Mine

Hot Sales Product Description Product Parameters

Model		MGC1.7-6	MGC1.7-9	MGC1.1-6	MGC3.3-9
Volume(m³)		1.7	1.7	1.1	3.3
Theoretical	Capacity(T)	1.5	1.5	1	3
Max. Load(T)		2.7	2.7	1.8	5.3
Gauge(mm)		600	900	600	900
Wheel Base(mm)		750	600	550	1100
Wheel Diameter (mm)		300	350	300	350
Traction(KN)		60	60	60	60
Traction Height(mm)		320	320	320	320
Overall Size(L*W*H)		2400x1050x1200	2100x1150x1300	2000x880x1150	3450x1320x1300
Weight(≤kg)		720	970	610	1320
